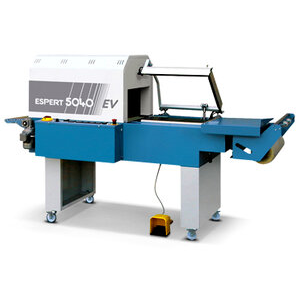

Italdibipack ESPERT 5040 EV
SPECIFICATIONS Italdibipack ESPERT 5040 EV
- Power supply: 240/400 V- 3 Ph + N
- Maximum power required: 5 KW
- Overall machine dimensions L x W x H: 2200 x 850 x 1500 mm
- Working plate height (on stand): 930 mm
- Tunnel entrance dimensions: 450 x 230 mm
- Tunnel length: 700 mm
- Machine weight: 270 kg
- Sealing area: 500 x 400 mm
- Maximum product height: 160 mm
- Impulse sealing system: Top blade
- Maximum roll width: 550 mm
- Compressed air consumption: 1 Nl/cycle
- Compressed air pressure: 6 bar
- Output: up to 900 pcs/h
