Description

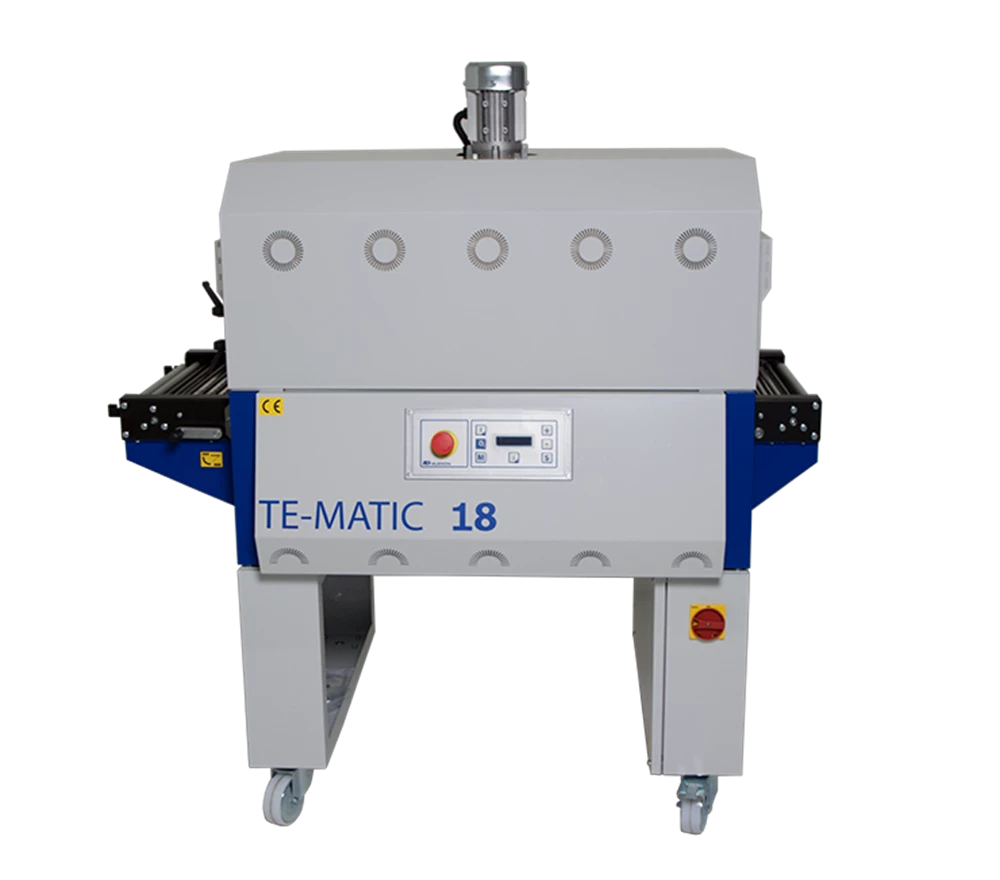

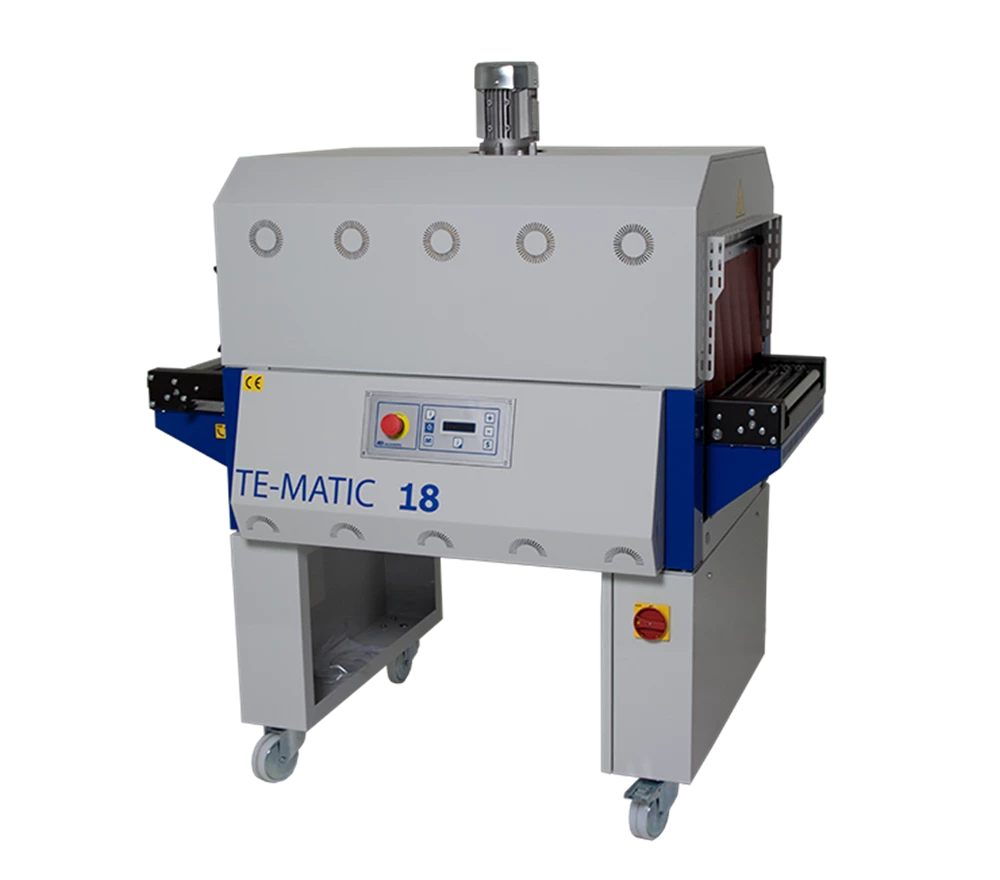

The Audion TE-MATIC 18 shrink tunnels are designed to seamlessly integrate into your packaging line, easily to be connected to an automatic L sealer or side sealer. Audion shrink tunnels are based on well proven quality and equipped with the latest and best shrink control technology.
The Audion TM shrink tunnel series are heavy duty shrink tunnels which are known for their high quality and precise shrink temperature vs speed controls. Easily it will shrink your thinnest polyolefin or the toughest polyethylene films.
The Main Features of the Audion Are:
- Adjustable shrink tunnel temperature
- Adjustable conveyor speed
- Tunnel air flow regulation by flaps
- Tunnel conveyor with silicone coated rotating rollers
- Control panel with back lighted LCD
- Automatic cool down function for end of shift
- Reduced power consumption
- Rollers can be fixed for PE
- 6 working programs
Specfications Audion TE-MATIC 18
|
TE-MATIC MODEL |
TM 18 |
|
Chamber |
Single Chamber |
|
Power Supply: 380 – 415 V – 3 PH-PE 50/60 Hz |
16 amp 5 pin |
|
Power Consumption |
8000W |
|
Max. Product Width* |
400 mm |
|
Max. Product Height* |
230 mm |
|
Conveyor Speed |
Adjustable from 2,8 – 9,4 m/min |
|
Tunnel Temperature |
85 – 200 °C |
|
Film |
Polyolefin / Polyethylene / PVC / Microperforated |
|
Film Thickness |
10 – 50 micron (perforated) |
|
Working Programs |
6 |
|
Tunnel Airflow |
Adjustable by Means of Independent Deflectors |
|

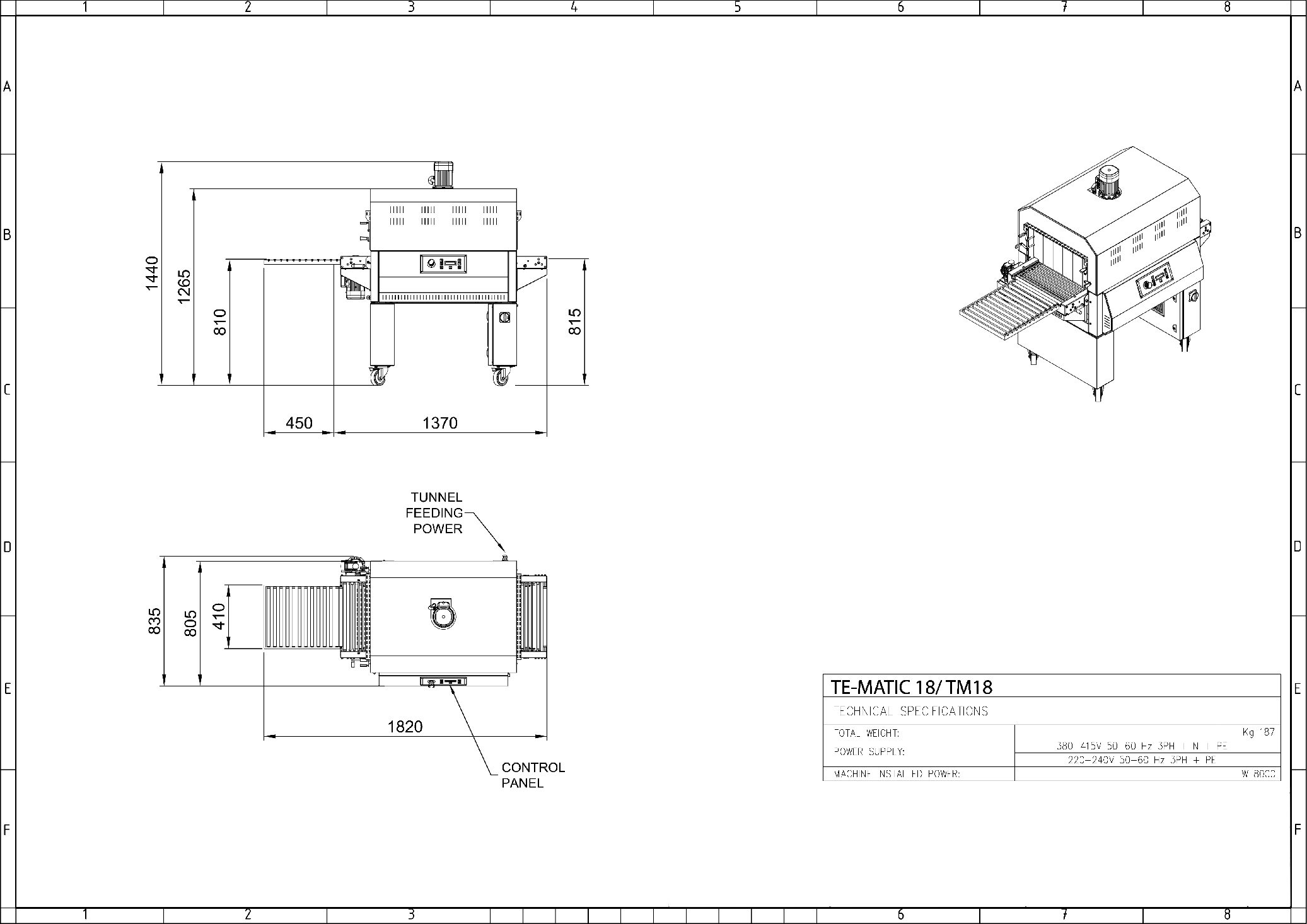

Machine Size (lxwxh) |
1310 x 835 x 1440 mm |
|
Shipping Size (lxwxh) |
1420 x 960 x 1540 mm |
|
Machine Weight |
187 Kg |
|
Shipping Weight |
223 Kg |
- The maximum product width and height depends on the type of L-Sealer connected to the tunnel. Both sizes cannot be reached together.
Benefits
The Audion TM 18 gives you as end-user the following benefits
- Optimal Control:
- Adjustable tunnel temperature, adjustable conveyor speed and tunnel air flow
- Smooth in- and Outfeed:
- Tunnel conveyor with turning or fixed silicone-coated rollers
- Black Lighted LCD:
- Makes settings highly visible and easy operable
- Automatic Cool Down Function:
- For the purpose of the curing process and convenient handling at the end of the shift
- Sustainable:
- Reduced energy consumption through good insulation
- Multiple Programs:
- For easy variable adjustment setting and possibility of scheduling up to 6 different work cycles
- Ergonomics:
- Boosting comfort and productivity
- Made in Europe:
- Built from high quality materials and compliance with CE regulations
