Description

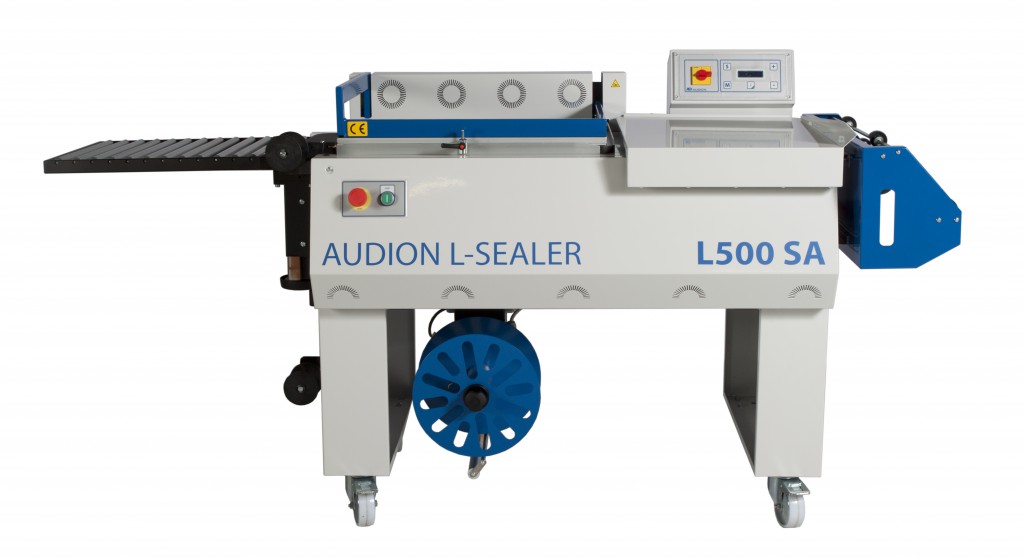

The Audionpack L500SA is a semi-automatic L sealer equipped with an automated system. When the start button is pressed, the sealing frame closes. At the end of the sealing cycle, the sealing frame opens automatically and goes back to its starting position, while the product is transported out of the area and the next product can automatically be inserted for the new packing cycle.
The Audion user-friendly software enables adjustment of the operating times of the frame and modification of the sealing pressure. The automatic conveyor automatically discharges the packed product, without intervention of an operator. A very fast and smart packaging cycle, designed to increase your productivity considerably.
*The stated speed can change according to the product size, the pack collation and the type of film used.
Product Features
- Semi automatic L sealer
- Automatic cycle mode
- Scrap film winder
- Scrap film guide device
- PTFE-coated sealing blade
- Liquid cooling circuit to cool sealing blade
- Working height of sealer and tunnel fully adjustable
- Emergency stop button
- Automatic transfer of the product to the shrink tunnel
- Adjustable shrink delay time for sealing thin film
User-Friendly Control Panel with LCD Displaying:
Machine information
Pack Counter
Sealing temperature settings
Conveyor speed
Automatic cycle mode setting
6 operating programs
Failure codes indication
|
Machine |
L500SA |
|
Seal Dimensions |
560 x 430 mm |
|
Max. Product height |
230 mm |
|
Max. Film Reel |
600 mm |
|
Max. Film Reel Diameter |
300 mm |
|
Film Thickness |
10-50 Micron |
|
Film |
PVC, Polyolefin, Polyethylene Micro Perforated |
|
Production Capacity |
600 – 1200 Packs Per Hour |
|
Power Supply |
230V +/- 10% 1Ph – 50/60 Hz |
|
Power Consumption |
2500W |
|
Machine Size (LxWxH) |
2020 x 790 x 1055 mm |
|
Shipping Size (LxWxH) |
1400 x 880 x 1190 mm |
|
Machine Weight |
148 Kg (gross 180 Kg) |
