Description
Just in and now for sale is this fully refurbished Duplo DC616 cutter creaser. Fitted with a full set of brand new upper and lower feed rollers. Enquire today about this machine.
Multi-Function Finishing
The versatility of the Duplo DC616 cutter creaser makes it ideal for finishing full bleed applications in a single pass. Its rotary slitters, guillotine cutter and depth-adjustable creaser provide the versatility of multiple machines without the costly, manual setup and production times. Margins trimmed horizontally by the slitter and vertically by the cutter, are automatically deposited into the large waste bin. Only the finished pieces are delivered into the exit tray. Creasing digitally-printed output prior to folding prevents toner cracking and unattractive fold lines. The creaser utilizes male and female matrix channels to create up to 20 creases across the sheet, enabling documents to be folded with ease. Creasing performance is optimized via the adjustable 3-step crease depth for various paper types and weights. The Card Stacker which is ideal for business cards and postcards and keeps smaller finished applications neatly stacked and organized.
Feeding
The DC-616 Slitter/Cutter/Creaser features a 100mm feed capacity stacker and a unique top air-suction feeding system to maintain consistency and productivity. The high capacity feeder allows the system to run for a longer period of time, minimizing constant reloading. The feeding system utilizes two fans instead of a pump for air suction and sheet separation, this reduces the overall noise level of the system, while the air knife provides additional air flow to the stack for improved feed consistency and static reduction. For enhanced reliability, the DC-616 also features an Ultrasonic Double Feed Sensor as standard to detect when two or more sheets have been simultaneously fed.

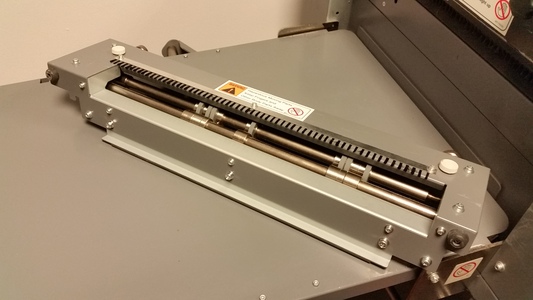

Perforation Tool
The DC-616 features a new Perforating unit that can be easily attached to the exit of the machine and is neatly stored away when not in use. The Perforating unit comes with two manually-adjustable perforation tools to perforate along the length of the sheet.
Slitter
Each of the 6 slitters are independently controlled, providing the operator with the flexibility to produce a wide range of finished applications such as 21-up full bleed business cards.
Specifications Duplo DC616 Cutter Creaser
Dimensions (L x W x H): 1600mm x 620mm x 1050mm
Weight: 150 Kg
Power Supply / Consumption: 230V AC, 50Hz / 100W (0.7 Amp)
Input Paper Size Min: 210mm wide x 210mm long
Input Paper Size Max: 320mm wide x 650mm* long (330.5 x 999mm**)
Finished Paper Size: Width: 48mm, Length: 50mm (45mm**)
Paper Weight Min: 110 gsm
Paper Weight Max: 350 gsm
Paper Curl: Within +/- 3 mm
Paper Type: Uncoated paper, coated paper, laminated paper
Feeder Capacity: 100 mm
Type: Top feed / Belt suction

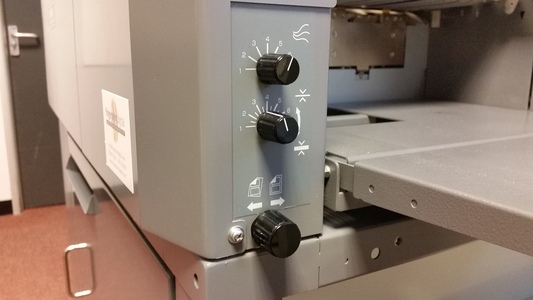

Crease Depth Adjustment: 3 steps (from control panel)
Number: 1 x cross knife
Maximum: 25 cuts (programmable in 0.1mm increments)
