Description

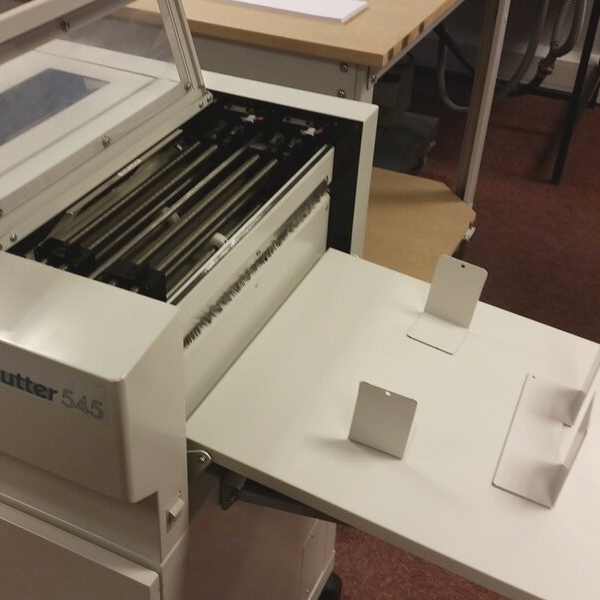

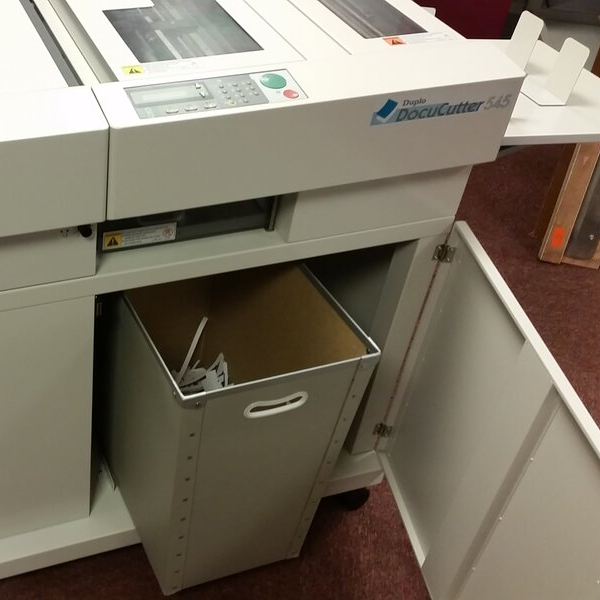

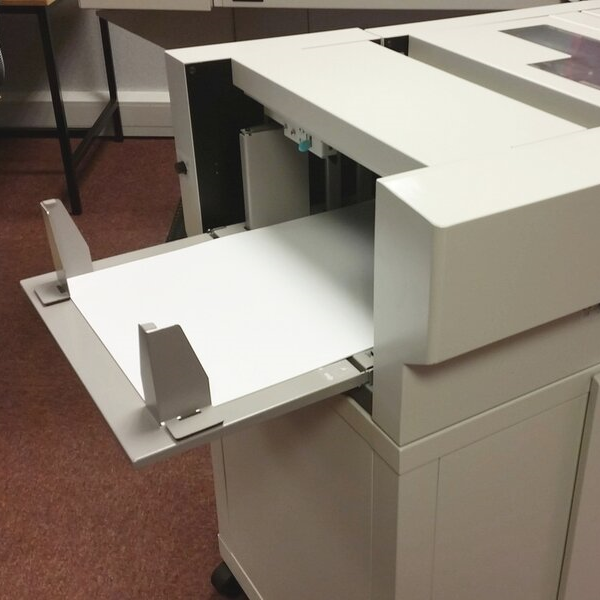

The Duplo DC545 comes with the AF-100 suction feed unit allowing uninterrupted feeding of paper stocks up to 320 x 650 mm. With a feeding specification of 150 – 350 gsm. The air separation allows digitally printed work to be fed with ease. Finished documents arrive onto a rear table with guides, and all waste is placed into a handy waste bin inside the machine. The DC545 has a total of 80 job memories plus LCD display. A barcode reader can scan each sheet after feeding into the machine. It also has status indicators for jams, safety cover open, and out-of-paper detection. Perform a wide variety of applications, including business cards, greeting cards, invitations, brochures, posters, book covers, photographs, and much more.
Duplo DC545 Specifications
Paper Size
Minimum 210 mm wide x 210 mm long
Maximum 320 mm wide x 650 mm long
Paper Weight
Up to 350 gsm

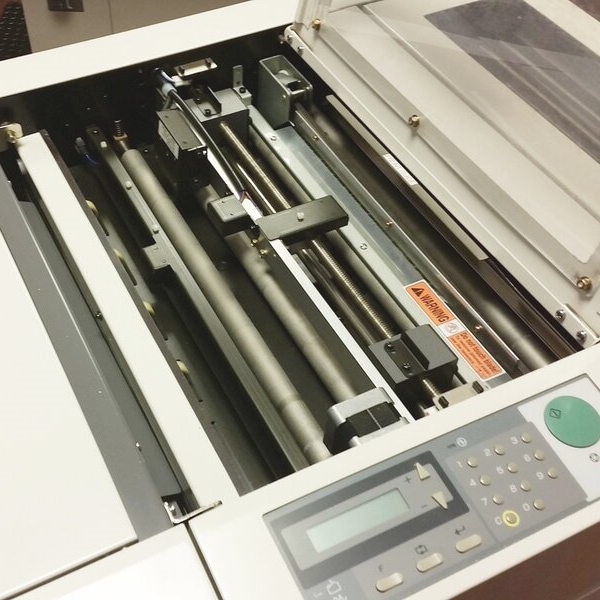

Slitters
Number 5 x rotary slitting knives
Slitter accuracy Programmable 0.1mm steps
Tolerance +/- 0.5 mm maximum over width of 320 mm
Cross Knife Trimmer
Number 1 x cross knife
Maximum Programmable 10 cuts
Lead Edge Trim Recommended minimum 3mm
Trail Edge Trim Recommended minimum 3mm
Accuracy Programmable to 0.1 mm steps
Tolerance +/- 0.7 mm maximum over length of 650 mm
Creaser
Number 1 x creasing rule across (width) paper direction
Maximum Programmable 4 creases, minimum distance to first crease 90mm
Accuracy Programmable to 0.1 mm steps
Tolerance +/- 0.7 mm maximum over length of 650 mm
Feeder
Capacity 100 mm
Type Air knife separation / Top feed / Belt suction
Speed Maximum 1440 creases per hour
Power Supply
Voltage Single phase 230V AC
Current 0.6 A
Machine Dimensions (mm)
Length 1585 mm
Width 580 mm
Height 960 mm
Weight 110 Kg
