Description

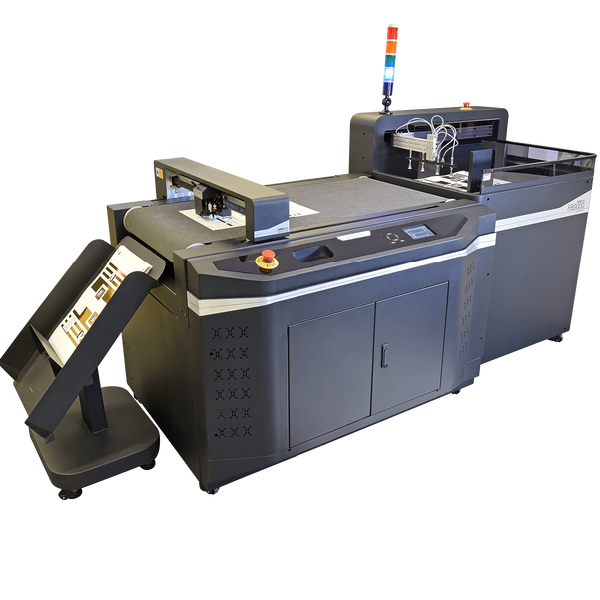

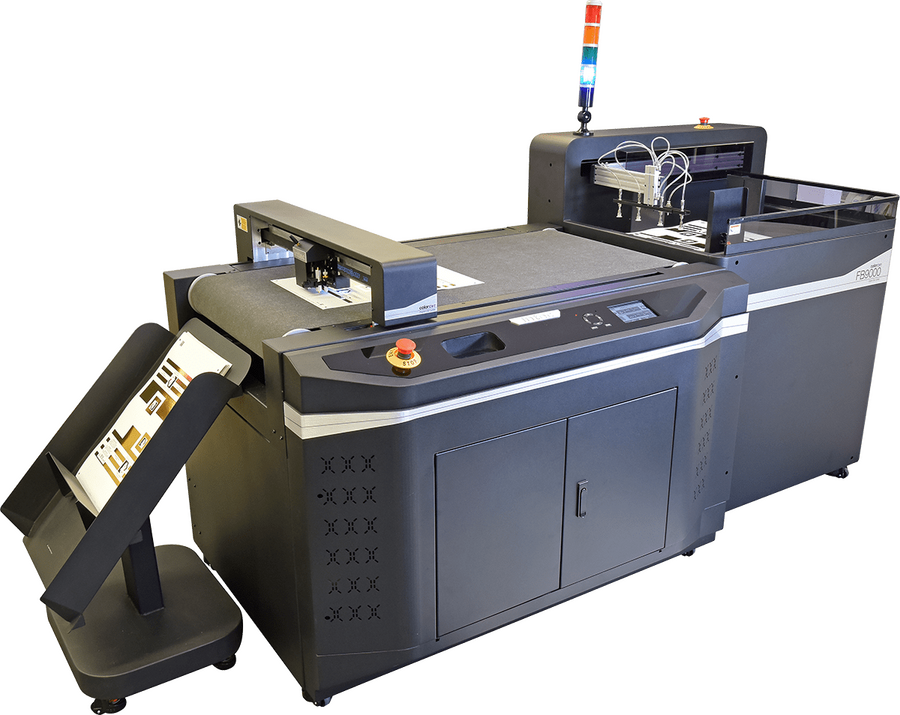

The new Intec FB9000 PRO Automatic Digital Die Flatbed Cutter is a premium turnkey solution for unattended and automated stacking, feeding and cutting of absolutely any shape packaging or sheet labels, and is targeted for high production environments and short run mixed job output.
Advanced component technology delivers creasing forces of up to 1.5kg and a cutting force of up to 1.2kg – perfect for media up to 1,000 microns.
Specification
Max Media Area:
(auto sheet feed) 480mm x 720mm
(manual placement) 550mm x 850mm (no mark scanning)
Effective Cutting Area:
(auto sheet feed) 480mm x 720mm
(manual placement) 495mm x 735mm
Registration System:
High speed CCD Camera – Vision3 Registration System, using live video feed and advanced 8th generation ARMS (Automatic Registration Mark System)
Job Recognition:
Advanced QR code technology for instant file recognition and registration
Stand: integral and included
Media Hold Down Method: 2 zone vacuum bed (High speed 750W vacuum pump included as standard)
Acoustic Cover for Pump: yes
Acoustic Features: Acoustic cover/housing for vacuum pump, silencer for vacuum pump intake
CUTTING CONTROL:
Mountable Tools: dual tool functionality, so any 2 tools can be fitted simultaneously – 3 tools supplied as standard: Blade holder, creasing tool & pen calibration tool
Force / Pressure:
Cutting force: Up to 1.2kg
Creasing force: Up to 1.5kg
DIMENSIONS:
Uncrated: Length: 1,000mm (39.37″) Width: 2,500mm (98.42″) Depth: 1,600mm (62.99″)
Intec FB9000 PRO Product Features
- Digital die cutter for on-demand cutting
- Dual tool head for clean cutting, crisp creasing, scoring and perforation – with up to 1.2kg cutting force and 1.5kg crease force
- Cut up to 1,000 micron media
- Auto sheet feeding for high productivity
- High-capacity stacker accepts up to 25kg (2,000 sheets) of printed media
- Adjustable pneumatic suction media pick up
- High-speed synchronized feeding
- Continuous belt cutting table for high productivity
- Driven by ColorCut Pro software
- QR coded Job Library for file retrieval
- Optical camera for accurate registration
- Portrait and landscape sheet fed orientation
- Mixed jobs can be loaded and cut
- Media choices – cut your project from thick FB board or kiss cut label media
- Ease of set-up and use with no requirement for dedicated operators/previous knowledge or specialised expertise
- Optional ColorCut Pro Server Station
