Description
Camera

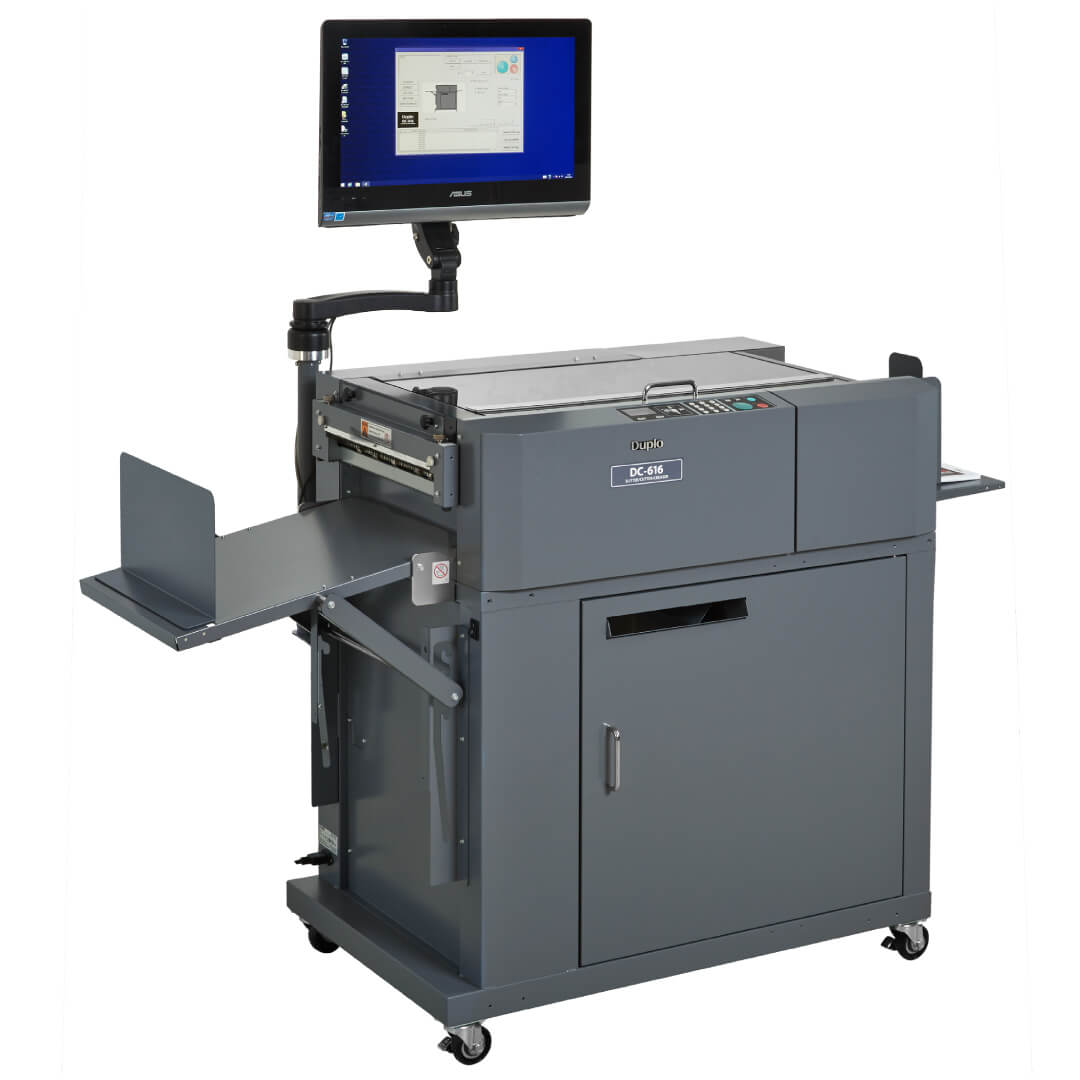

The Duplo DC-616 PRO is fitted as standard with a CCD camera, which reads barcodes from printed sheets, ensuring perfect registration. Information from the barcode is also used to automatically position the DC-616 PRO’s six slitters and the guillotine and creasing bar as the sheet passes through, saving valuable make ready time.
User Friendly PC Controller
Setting up new jobs is quick and simple using the DC-616 PRO’s PC Controller software, which also has pre-set job templates installed. You can save up to 80 jobs in the machine’s memory, and a virtually unlimited number in the PC memory, all available for instant recall and fast changeover.
Unattended Running
With its multifunctional capability, automatic set-up and ease of use, the DC-616 PRO allows you to produce jobs quickly and with fewer machines and fewer operators. Your press operator can keep the press running while also reducing bottlenecks in finishing, making you more productive and more profitable.
| Model/Type | DC-616/DC-616 PRO |
|---|---|
| Input Paper Weight | 110 – 350 gsm |
| Input Paper Size | Width 210mm – 330.5mm Length 210mm – 670mm Optional long paper tray is for 460 mm to 670 mm |
| Minimum output size | Slit width 48.0mm Cut length 50.0mm |
| Tolerance | +/- 0.3mm |
| Speed | 10ppm (A4-2cut-1crease) |
| Procedure per sheet | 6 slits, 25 cuts, 20 creases |
| Optional equipment (DC-616) | Perforation unit, PC Controller, Card Stacker, Air Knife, Double Feed Detection, CCD, Long Paper Tray, PC Arm Mount |
| Optional equipment (DC-616 AP PRO) | Standard component Perforation unit, PC Controller, Card Stacker, Air Knife, Double Feed Detection, CCD Optional eruipment Long Paper Tray, PC Arm Mount |
| Power | 115VAC, 60Hz, 230VAC, 50/60Hz |
| Dimensions | In use 1,610(W) x 625(D) x 1,060(H) mm In storage 975(W) x 625(D) x 1,060(H) mm |
| Weight | DC-616 140kg DC-616 AP PRO 150kg |
