Description

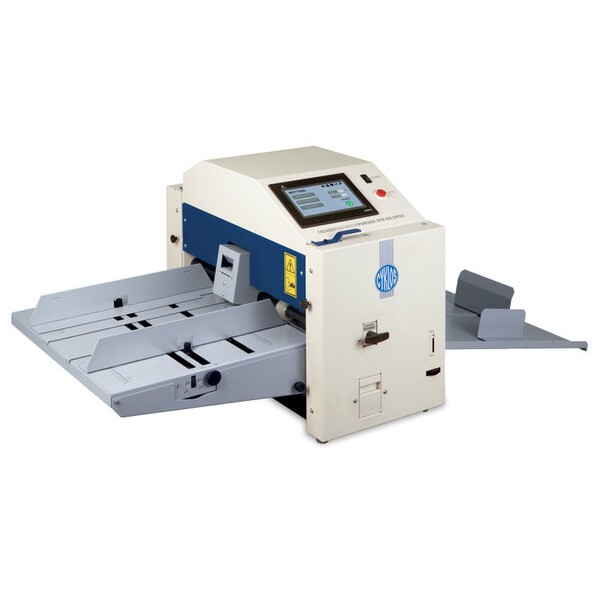

Cyklos GPM 450 SPEED Creaser
| Cyklos GPM 450 SPEED WORKING WIDTH |
95 – 457 mm | |
| GRAMMAGE |
80 – 400 gsm (creasing, punching), 80 – 250 gsm (perforating) | |
| WIDTH OF CREASE |
CITO 1,0 mm – paper grammage 80 – 200 gsm iron channel 1,9 mm – paper grammage 200 – 400 gsm |
|
| MIN./MAX. DISTANCE BETWEEN CREASES |
1/ 1000 mm | |
| INPUT CAPACITY |
50 mm | |
| SPEED |
2500 sheets A4/ h (1 crease per A4) | |
| DIMENSIONS |
1250 x 675 x 520 mm | |
| PACKING SIZE |
1 pallet – 1200 x 800 x 720 mm | |
| WEIGHT |
Netto 121 kg, gross 157 kg (including mobile table) | |
| VOLTAGE / FREQUENCY |
230 V/ 50Hz, 110 V/ 60 Hz | |
| CONTENT OF PACKING |
2 x creasing tool, 1 x perforating tool, mobile table | |
| OPTIONAL TOOLS |
Punching tool – square 5×5 mm, 2:1 Punching tool – square 6×6 mm, 2:1 Punching tool – square 4×4 mm, 3:1 Punching tool – square 4×4 mm, 3:1, calendar punch Punching tool – round, dia 4 mm, 3:1 Punching tool – round, dia 4 mm, 3:1, calendar punch Punching tool – oval 5×4 mm (plastic coil) Euro Punch tool Microperforating tool Partial perforating tool |
