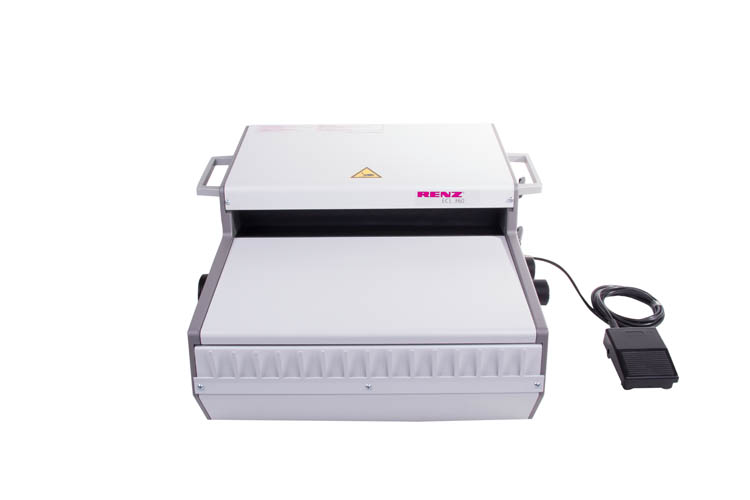

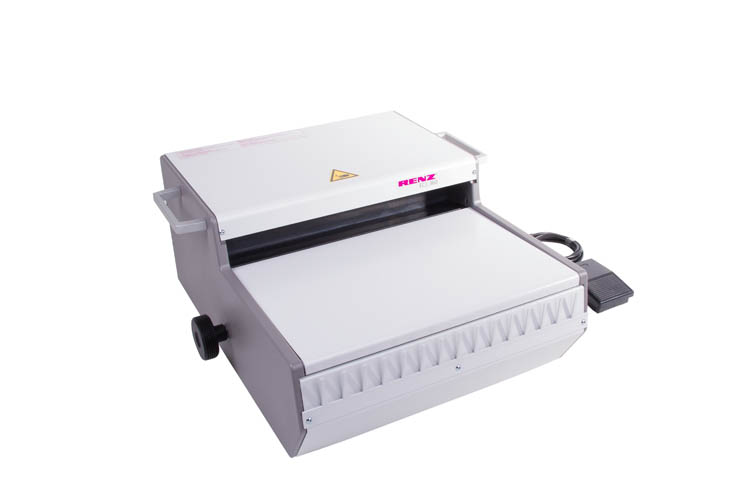

Renz ECL 360 Closer

Electric RENZ Ring Wire closing machines, no effort required. A user-friendly solution to wire bind all your products quickly and easily, available in 360 mm.

  • Quick size adjustment for fast wire diameter set up
  • Integrated ring wire hanging device for comfortable working
  • Binds up to 340 sheets
  • Fast and consistent bind cycle from the first to the last document every time
  • Binds the largest diameter 1 1/2“ (38 mm) RENZ RING WIRE®
  • Automatic protection safety switch
  • Parallel adjustment guarantees a perfect bind every time.
Category:

Description

Pitch 4:1, 3:1 & 2:1
Binding thickness 1 – 34 mm
Binding element Ø 6.9 – 38 mm
1/4″ – 1 1/2″
Min. binding width 10 mm
Max. binding width 360 mm
Min. unbound edge 65 mm
Max. unbound edge 600 mm
Binding operation Electric
No. of books output per hr 400
No. of calendars output per hr 250
Time required for diameter change 20 s
Format change without diameter
Calendar hangers Loose
Machine dimensions L x W x H 530 x 520 x 230 mm
Machine weight 38 kg
Machine packing dimensions L x W x H 630 x 600 x 340 mm
Machine weight with packing 42 kg
Power requirement 230/250V / 50Hz / 250W
115/200V / 60Hz / 250W



Renz ECL 360

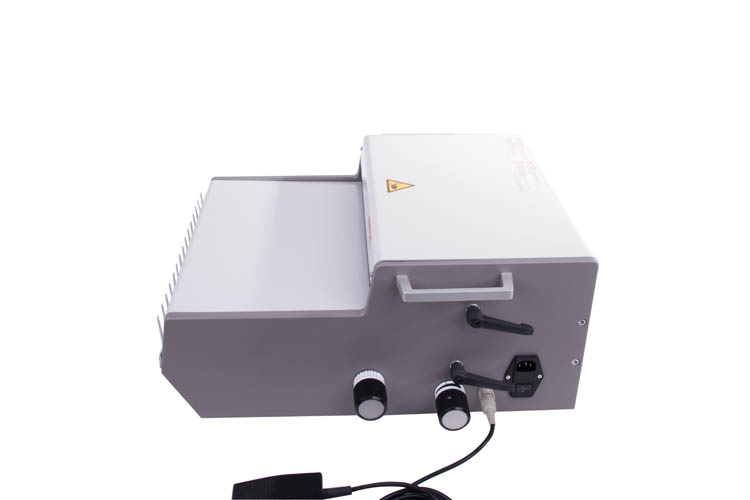

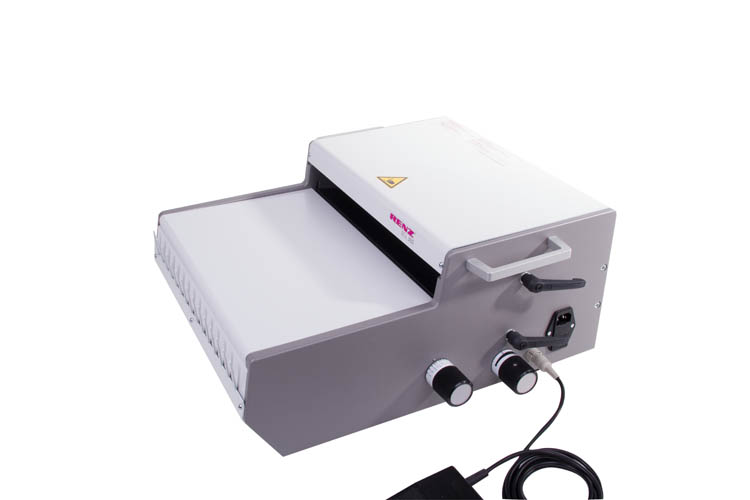

Fast and comfortable wire diameter changes adjusted by a simple hand wheel guarantee the perfect setup.
Renz ECL 360
Renz ECL 360 features a automatic safety switch will always cut off the machine preventing any injury to a worker. The machine can be easily reset by turning the power switch off and on.
Renz ECL 360
Pre-punched paper is loaded onto the integrated easy-loading wire holder.
Renz ECL 360
Optional WP 300, which sits on top of the ECL 360, automatically dispenses the wire from the RENZ Wirepack when the foot pedal is pressed. It gives you the most automated bench top wire binding system available.
