Ideal 7260 LT Guillotine
IR Safety Curtain
The light beam safety curtain in the working area of this professional guillotine ensures the highest level of safety and cutting convenience.
Electronic Hand Wheel
Ideal for manual backgauge positioning, the electronic hand wheel has infinitely variable speed control from very slow to very fast.

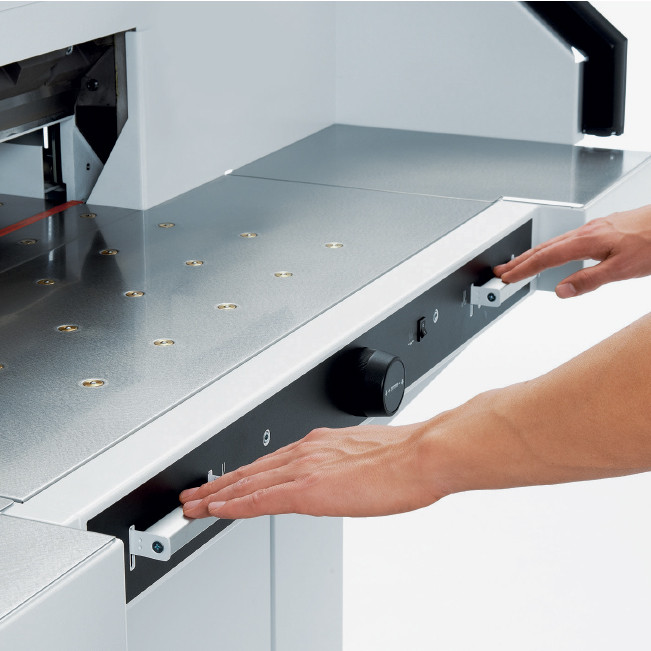

Patented EASY-CUT Activating Bars
A cut can be executed conveniently by means of the patented EASY-CUT blade activating bars, which guarantee a safe two-hand operation.

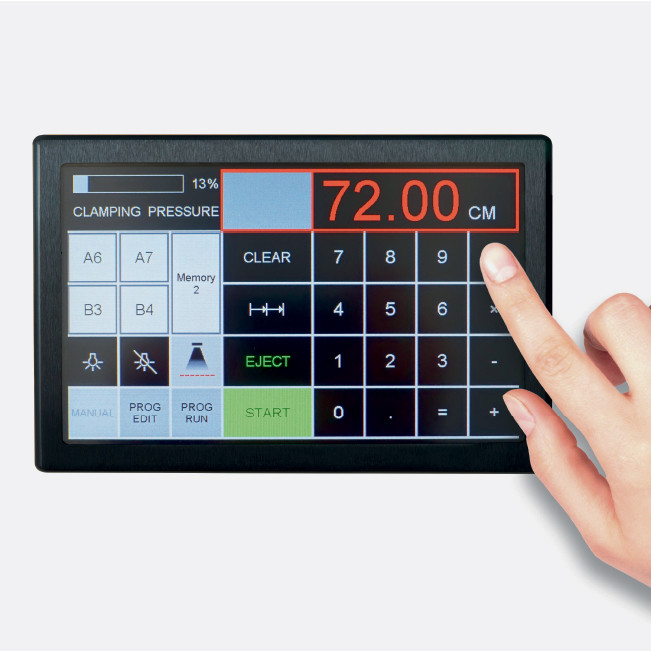

Easy-to-Use Large 7-inch Touch Pad
Extremely convenient: Electronic, programmable control module for the power backgauge with multi-lingual touch pad. 99 programs with 99 steps in each program can be stored.

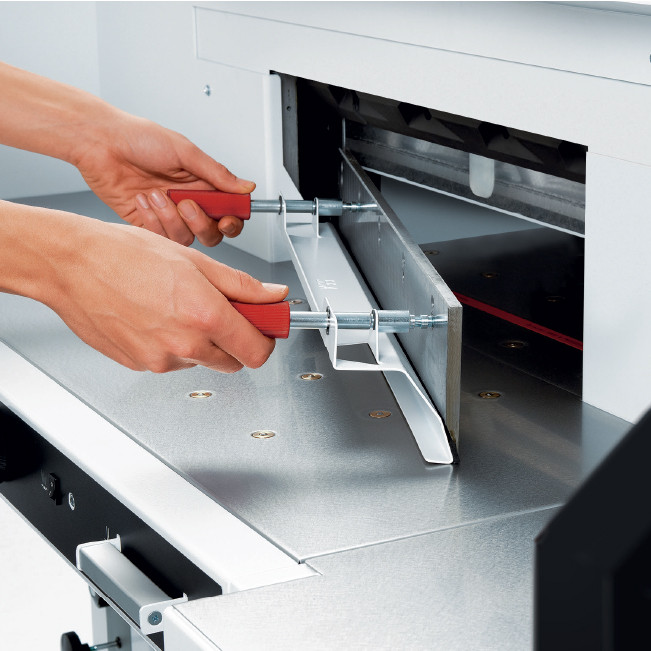

Safe Blade Change
Safe and convenient blade change without removing covers. Blade changing device covers cutting edge of blade to protect the operator.
| Cutting length: | 720 mm |
| Cutting height: | 80 mm |
| Table depth: | 720 mm |
| Narrow cut: | 20 mm |
The Ideal 7260 LT Guillotine has electromechanical backgauge drive with precision spindle for exact positioning. Electric backgauge drive with touch pad for easy setting. Memory key for repeat cuts. Programmable EJECT function – for pushing out the paper.
Clamping pressure infinitely adjustable (min. 250 daN, max. 2000 daN) with optical indicator. Snap-in false clamp plate with optical indicator for delicate work. Foot pedal for pre-clamping or as mechanical cutting line indicator. Optical cutting line with bright and durable LEDs.
Solid steel blade carrier with adjustable guide plates on both sides. Blade made of German high quality HSS steel. Solid all-metal construction. Stainless-steel working surface for front table. Complete with air table (air jets on front and rear table), practical tool holder and
stacking angle. Optional set of side tables (left and right) available at an extra cost.
The Ideal 7260 LT Guillotine has 99 programs with 99 steps in each program (up to 15 repeat cuts can be integrated into a program as one single program step). Program runs automatically. It has a 10-button key pad for presetting of measurement. Integrated calculator. Pre-programmed measurements for standard paper sizes.
