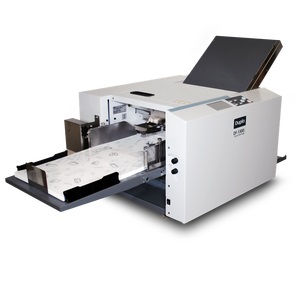

Duplo DF-1300L

Duplo DF-1300L

The Duplo DF 1300 L is an air suction folder capable of handling long sheet lengths commonly found on newer digital presses.

Automation and ease of use
Ideal for colour digital print
Fold long A3 formats to 648mm
Eight fold patterns including cross folding



Category:

Description

The Duplo DF-1300L is a compact folder that is unique in its class by supporting the folding of long A3 format sheets. This brings new opportunities for creative organisations, in-house printers and small digital print shops, to explore a wider variety of fold patterns and finished formats to attract and inspire their customers. A high degree of automation and ease-of-use through touch screen controls make this ideal for locations where print is not necessarily the main business, but there is a need to create printed documents using all the features available in the latest light production presses. The Duplo DF-1300L features of air suction feeding and ultrasonic double sheet detection in a very compact floorprint, all contribute to make this a perfect solution for folding digitally printed papers.

Manufacturer Duplo
Model DF-1300L
Condition New
Paper Size Max 311x648mm. Min 120x182mm
Paper Sizes A3/B4/A4/B5/A5/B6
Paper Weight Coated Paper 70-160gsm. Single fold to 230gsm
Paper Feed Tray Capacity 50mm
Feeding System Belt Air Suction with Side Air Fan
Double Feed Detection Ultrasonic and Optical
Job Memories 30
Operator Controls LCD Touch Screen & Button Control Panel
Folding Speed Maximum 310 sheets per minute
Feeding Modes Batch Count with Interval Function
Machine Dimensions W-900 (1353mm in use) x D-587 x H-614
Power 240v AC 50Hz 0.8A & Power Save Mode
Machine Weight 71kg

Optional Wheeled Cabinet, adds 370 mm to height



View the above video on YouTube by clicking here.

We offer a range of finishing supplies click here to find out more.
